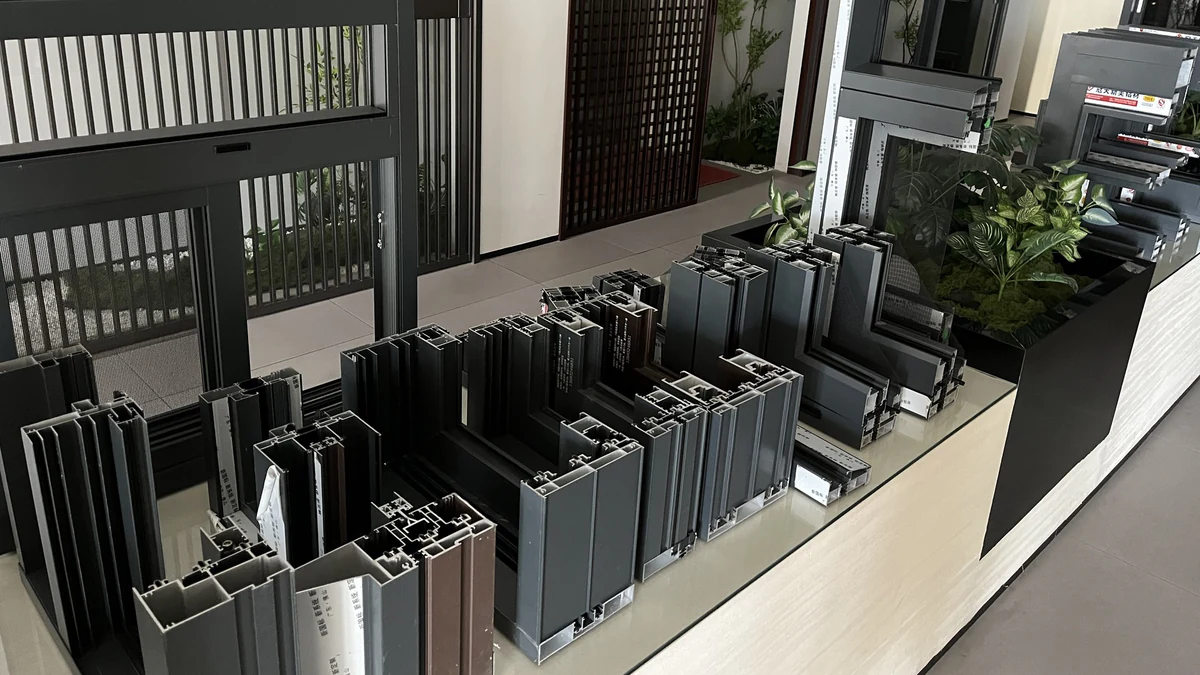

Why matching components belong in the first discussion
A profile can meet its section drawing and still fail to assemble with a locally sourced hinge, roller or gasket. The missing information is often the actual mating component, its permitted tolerance or the thickness of the finished coating. Treat the frame, sash, hardware and seals as one assembly rather than separate purchasing lists.
Powder coating commonly specified at 60–80 micrometers adds about 0.06–0.08 mm to each coated face. Two opposing coated faces can therefore reduce a groove opening by approximately 0.12–0.16 mm. Local buildup, profile geometry and the specified coating system also affect the finished fit. A nominal bare-metal slot dimension is not enough to approve the final interface.
Tolerance stack-up matters as well. A profile opening at the tight end of its tolerance and a hardware component at the large end can consume the intended running clearance. For example, deviations of 0.15 mm on each component can produce a combined 0.30 mm change. Reviewing both drawings and physical samples makes this risk visible before bulk production.
Five interfaces to check before approving a die
- Hardware grooves: confirm the hinge, locking point and fastener geometry against the actual system, rather than relying only on a generic Euro-groove description.
- EPDM gasket channels: check the gasket foot, retention lips, insertion force and compression needed in the completed frame.
- Sliding rollers and tracks: verify wheel diameter, cartridge width, track clearance, running surfaces and end connections.
- Corner-cleat cavities: confirm the cleat section, insertion depth, fastening method and the fit after cutting and finishing.
- Wool-pile slots: check the backing-strip width, pile height and retention at the slot mouth.
Mark the dimensions that control assembly on the drawing. Identify visible faces, drainage features and areas that must remain free from burrs or coating bridges. If a local component supplier changes its specification, send the revised sample before approving a repeat order.
Separate purchasing versus coordinated sourcing
| Purchase stage | Separate purchasing | Coordinated profile and component review |
|---|---|---|
| Drawing review | Each supplier checks only its own part. | Profiles, hardware, seals and thermal-break strips are reviewed as an assembly. |
| Coating allowance | The slot may be approved at bare-metal dimensions. | The die drawing accounts for the intended finish and actual mating samples. |
| Trial assembly | Compatibility problems emerge at the buyer's workshop. | Coated trial profiles are checked with the agreed components before approval. |
| Sample scheduling | Independent sample shipments can extend the approval cycle. | Samples can be brought together for a coordinated review; the schedule is confirmed per project. |
| Export consolidation | The buyer coordinates several deliveries and packing lists. | Profiles and agreed accessories can be consolidated into one shipment. |
Example slot allowances of 0.10–0.15 mm per side are starting points for engineering review, not a universal enlargement rule. An allowance that helps one gasket may make another too loose. The approved drawing, actual coating and trial assembly determine the final dimensions.
What happens during sample approval
Provide DWG or PDF section drawings, the target finish and the actual hardware and gasket samples. Confirm the delivery recipient before sending samples to the Sanshui plant or Nanhai warehouse. Our engineering team reviews the interfaces and agrees which dimensions need dedicated gauges or practical fitting checks.
Trial inspection can include Go/No-Go checks, gasket insertion and pull-through tests, roller movement and a 45-degree corner assembly. Photographs or video help explain the result, but the approved physical sample remains important when appearance, operating feel or seal compression is critical. Approve the finished sample and drawing revision before releasing the production batch.
For consolidated orders, confirm the bill of materials, quantities, approved brands or substitutions, accessory packaging and carton identification. Hardware, gaskets, PA66 strips and aluminum profiles can then be planned together for container loading. Accessory availability and any procurement charges are stated in the quotation.
Frequently asked questions
Can you check hardware that we already buy locally?
Yes. Send the component drawings and representative physical samples. Our team can review compatibility and test them against trial profiles. Confirm any licensing, proprietary system requirements and the intended installation conditions with your own system supplier.
How long does the matching review take?
A straightforward initial assessment may be possible within 48 hours once complete information and samples are available. Tooling, finished samples and courier delivery require a project-specific schedule. An initial response is not the same as completed sample approval.
Can coating close a narrow gasket or hardware slot?
Yes. Film thickness and local buildup can change the slot opening. Slot geometry and spray settings should be reviewed together, followed by a check on the actual coated sample. Removing coating after production should not be the default solution.
